USCX200
Description

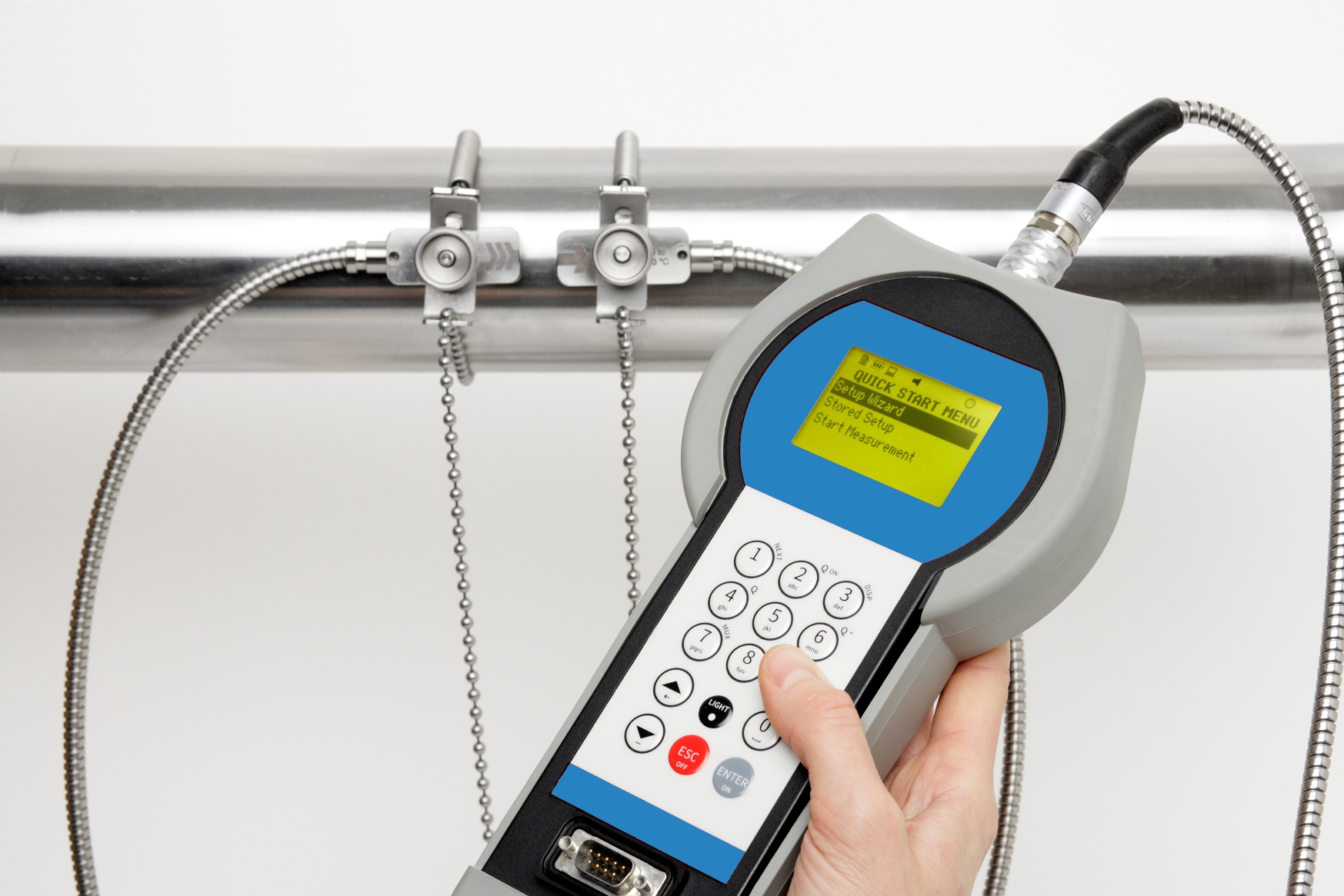

The USCX200 is a fully portable instrument with power which is belied by its small size. This lightweight flowmeter is incredibly easy to use and can be operated one-handed which makes it an ideal tool for use in confined spaces or when working at height.
Specification
- Pipe diameter range 10 mm to 6,500 mm
- Temperature range for sensors –30 °C to +250 °C (-22 °F to +482 °F)
- Weight 650 g
- Robust IP 65 enclosure with added rubber shock protector
- Selectable three-line LCD display and full keypad
- Battery life up to 24 hours with standard NiMH AA batteries for simple replacement
Features
- Lightweight and tactile for easy one-handed use
- Stainless steel sensors, cable, and connectors as standard
- Innovative installation wizard for quick and intuitive programming
- Full instrument diagnostics and scope function
- Large data logger and software for sampling and data transfer
Applications
- Pump testing and inspection
- In-line flowmeter performance verification
- Leakage and blockage detection
- Clean in process system (CIP) testing
- Monitoring of hydraulic systems
- Cleanroom applications
Contact our Sales department
If you would like to get a quote for your USCX200, click on the button below to contact directly with our Sales department.
Arkon literature
Here you will find available to download all documents and information relative to USCX200 such as manual, datasheet, or brochure.
